Solarlux Timber Lift & Slide Doors – SL178

The SL 178 lift and slide door from Solarlux is a twin track lift and slide timber system with flush track and bottom running tilt and slide running gear. It is available in a range of timbers and colours.

DESIGN FEATURES

  • 184 mm frame; 78 mm timber panel profile
  • Laminated engineered timber used for the panel profiles
  • Panel width 820 to 3335 mm
  • Panel height 1175 to 3325 mm
  • Glass thicknesses from 24 to 42 mm
  • Locking by means of anti-burglar bolts

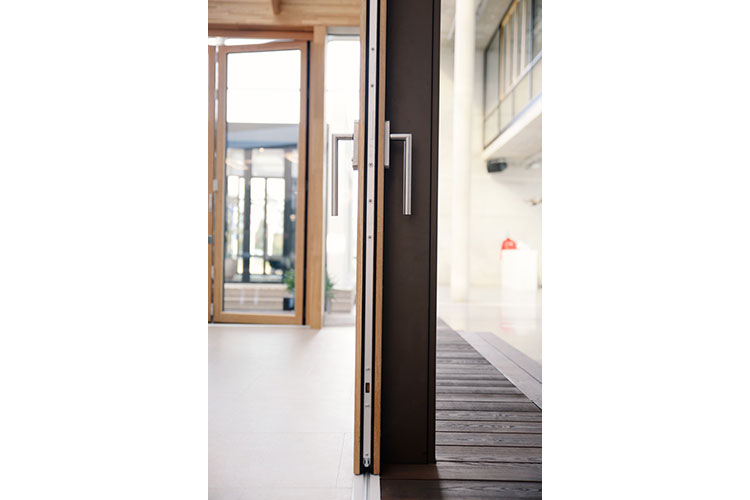

  • A lever on the inside and a cup drawer pull on the outside are standard fittings of the sliding panel

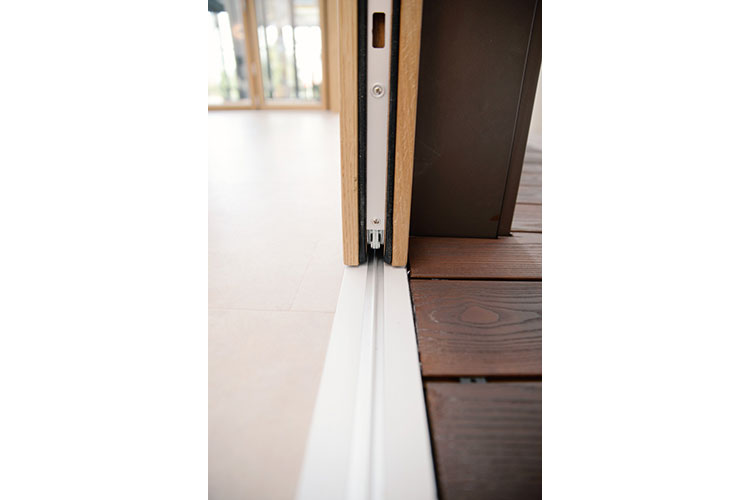

  • Threshold for wheelchair access according to DIN 18040 with a 5 mm raised runner track
  • The threshold is a combined multi-cavity aluminium/PVC profile which is strong and has excellent heat insulating properties



Thames Valley Windows is proud to be recognised as a Solarlux Quality partner. Read more about this here.
